Hybrid setup

Follow these steps to install and run the Authnull hybrid admin console application using Docker and Docker Compose on a Linux machine.

Pre-requisites:​

Linux:​

  • Docker must be installed on the system.
  • Docker Compose must be installed.
  • Root or sudo access is required.
  • Ensure that the Docker Engine service is running.

Setup Admin Console:​

Step 1: Verify the Docker Installation​

Run the following commands to verify the Docker and Docker Compose installations.

docker --version
docker compose version

Step 2: Log in to the Docker registry​

Run the login command to authenticate with the AuthNull public registry.

docker login docker-repo-public.authnull.com

The username and password have been provided to you via email.

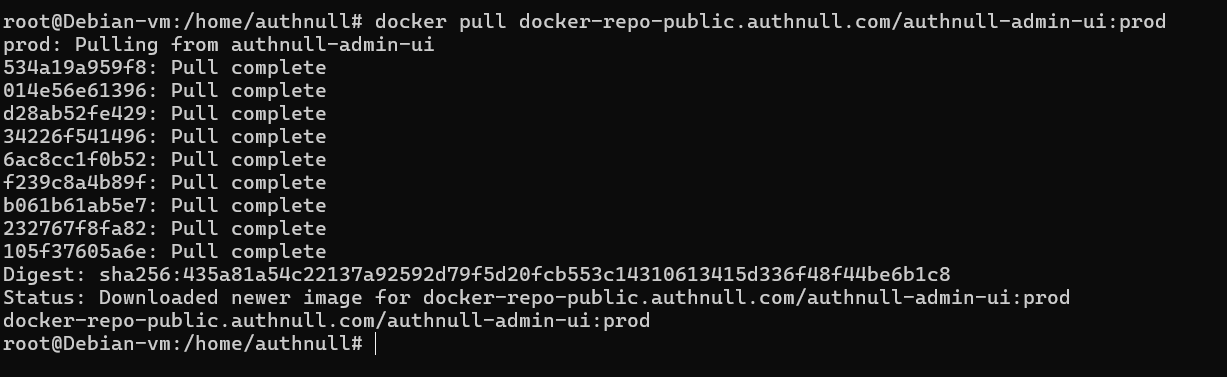

Step 3: Pull the Authnull Admin Console Docker image​

docker pull docker-repo-public.authnull.com/authnull-admin-ui:prod

Docker Pull

Step 4: Verify the Pulled Image​

List the available Docker images to confirm that the image has been downloaded.

docker images

Verify Image

Step 5: Navigate to Docker Compose Directory​

Navigate to the folder where the docker-compose.yaml file is located.

cd /path/to/docker-compose-folder

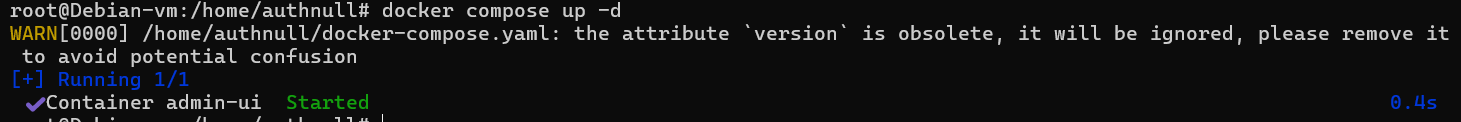

Step 6: Start the Admin Console Container​

Run the following command to start the required container in detached mode.

docker compose up -d

Run docker

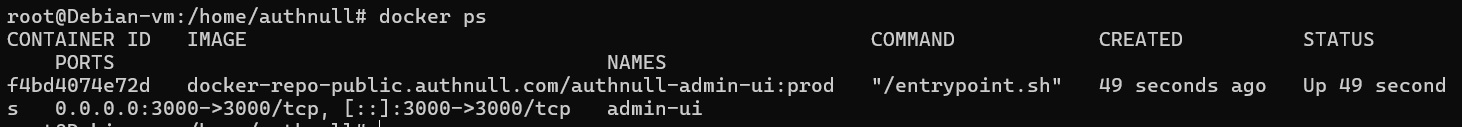

Step 7: Verify the Running Container​

Run the following command to confirm that the Admin Console container is running.

docker ps

Verify docker

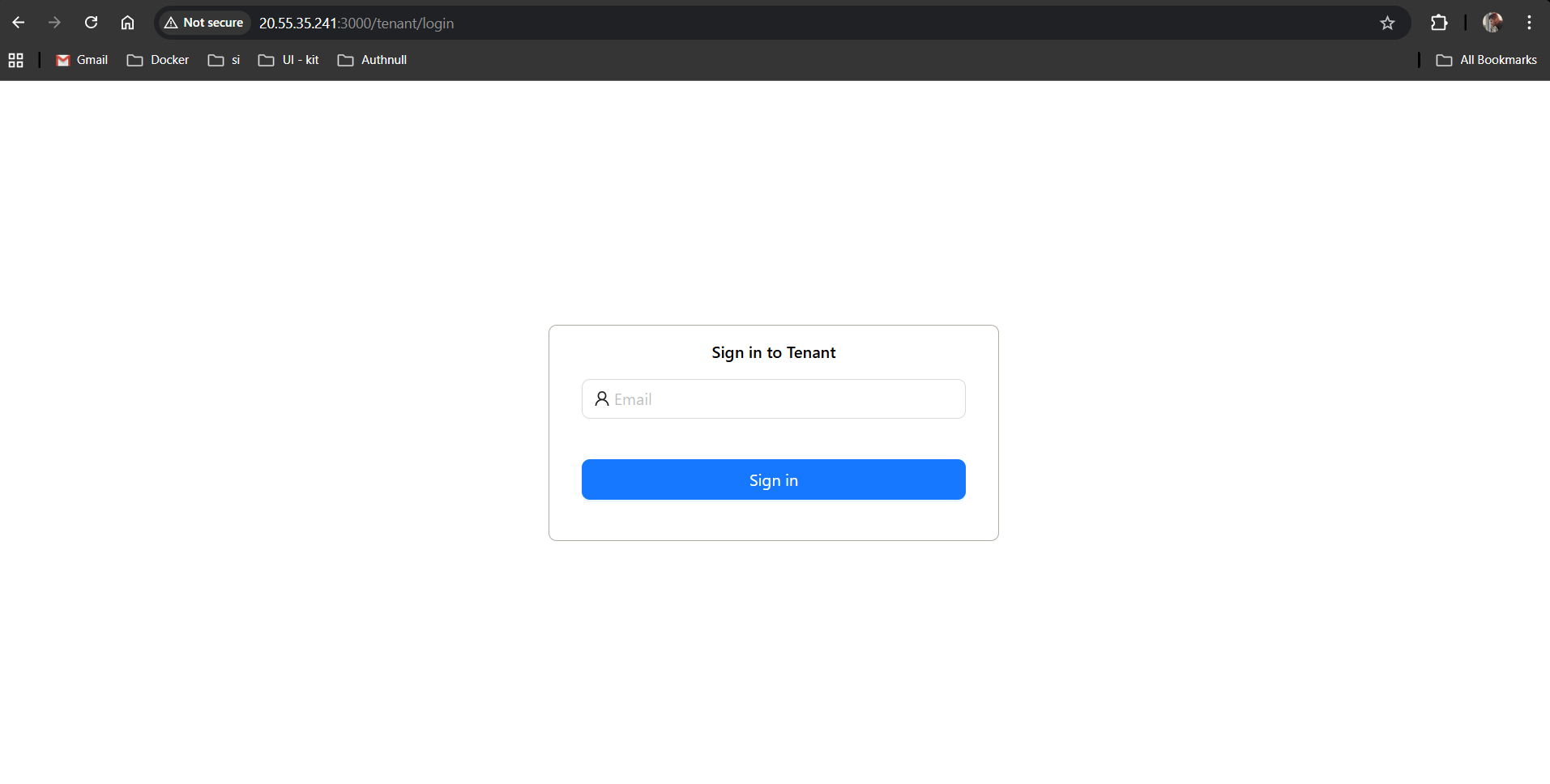

Step 8: Verify that the Admin Console is running in the browser​

Open the following URL in your browser to confirm that the Admin Console service is running on your system.

http://<linux-server-ip>:3000

Admin Console

Completion​

Upon completing the above steps, the Admin Console application will be successfully deployed. Ensure that all services are running and accessible. You can monitor logs using the command.

docker logs <container_name>
